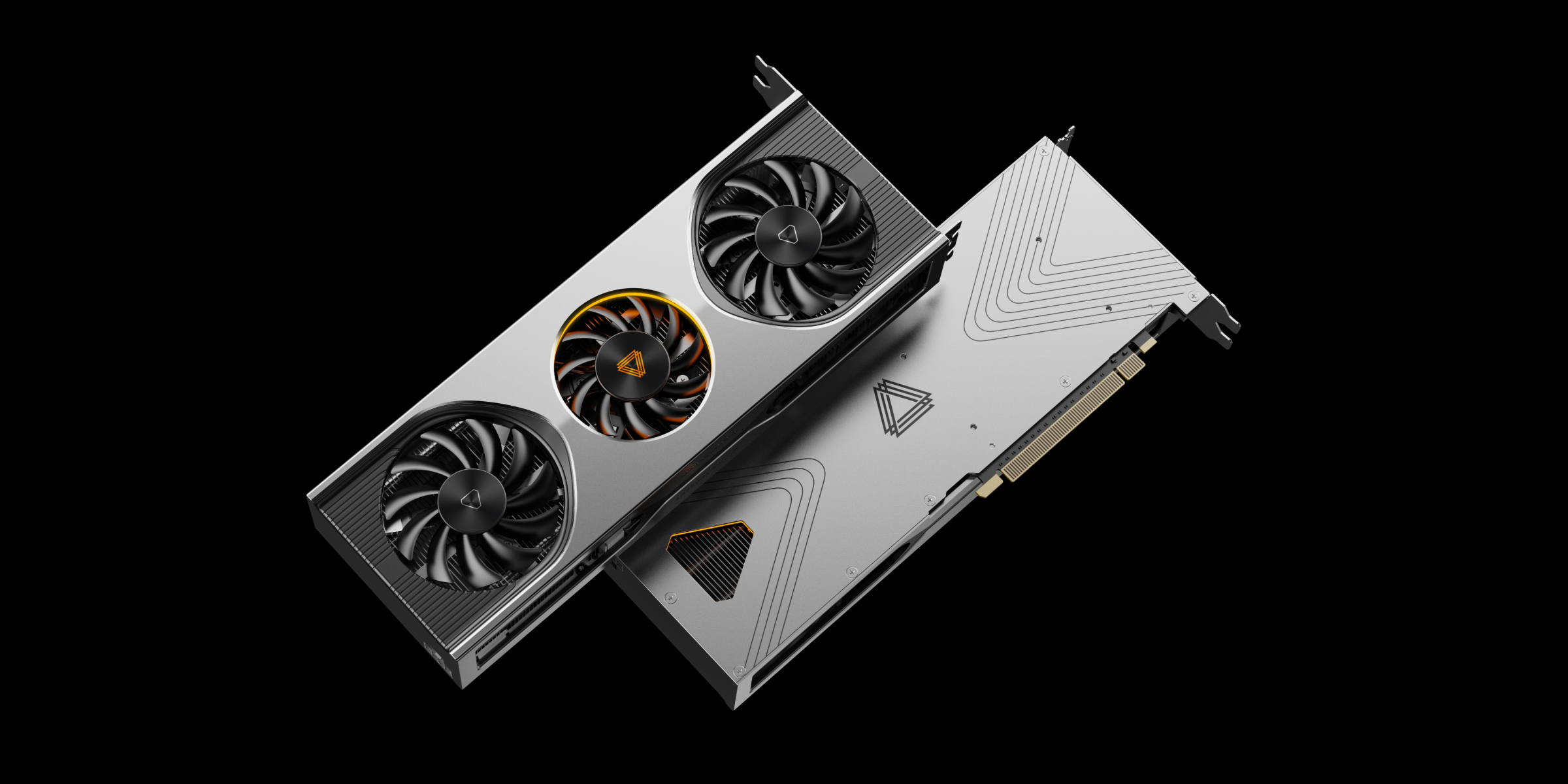

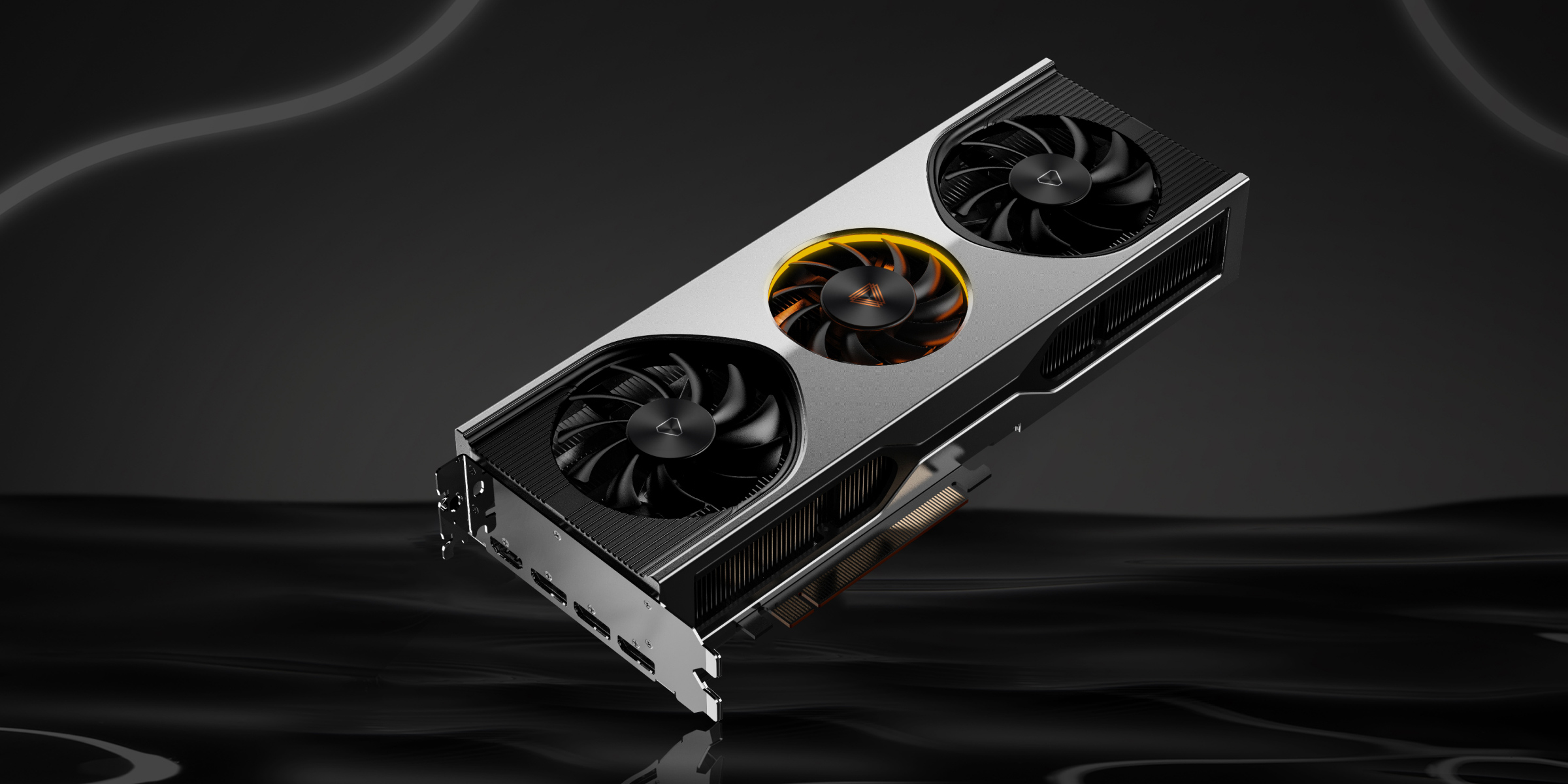

The MTT S80 gaming graphics card comes fully equipped with the advanced "ChunXiao" chip core and houses 4096 MUSA stream processors. Operating at a core frequency of 1.8GHz, it's capable of delivering 14.4 TFLOPS of single-precision floating-point compute power. Additionally, the MTT S80 features a PCIe Gen5 x16 interface along with 16GB of GDDR6 high-capacity, high-speed memory, further bolstered by its ability to support 8K ultra-high-definition and 1080P at a 360Hz high refresh rate display output. The MTT S80 is designed not only to provide gamers with formidable 3D rendering capabilities but also to offer complete GPU functionalities for students and researchers in various realms such as artificial intelligence, general computing, and multimedia processing.

Unstoppable, Fight to the End

Enjoy Gaming

Provides a smooth experience at 4K resolution in Windows DirectX games.

The First Graphics Card with PCIe Gen 5

Fully unleashes the computing performance of the graphics card, offering a smoother gaming experience.

16GB GDDR6 High-Speed Memory

Large capacity, ultra-high speed, easily copes with the acceleration of digital content rendering.

8K Ultra-High-Definition Display

The second-generation intelligent multimedia engine supports up to four 8K resolution display outputs.

Full-Featured GPU

Supports graphics rendering, multimedia processing, AI computing, and physical simulation.

PES Control Center

Helps users achieve a friendly graphics card application experience.

Enjoy Gaming

The powerful 3D graphics rendering capabilities of the MTT S80 can provide users with a smooth operation experience at 4K resolution in Windows DirectX games. Moore Threads will continue to optimize the MTT S80 in various dimensions such as hardware, computation, memory access, scheduling, and systems, aiming to bring better gaming performance and broader game compatibility to users.

The First Graphics Card with PCIe Gen 5

Modern games contain a large amount of high-precision texture data that must be rapidly transferred from storage to the graphics card during game rendering, and the PCIe interface determines the data exchange speed between the graphics card and the entire system.

Moore Threads MTT S80 is the first graphics card equipped with a PCIe Gen5 interface, offering the highest bidirectional 128GB/s transfer bandwidth. It can fully unleash the computing performance of the graphics card to provide a clearer and smoother gaming experience.

16GB GDDR6 High-Speed Memory

The MTT S80 is equipped with 16GB of GDDR6 high-speed memory, fully satisfying the needs of PC games for data storage and high-speed transfer of exquisite images. It helps the graphics card load more ultra-high-definition textures, thereby reducing the number of content loads and the issues of frequent game stuttering and insufficient frame rates due to lack of memory capacity. The higher operating frequency and memory bandwidth provided by the GDDR6 specification further enhance core performance, helping to maximize the potential of the hardware.

8K Ultra-High-Definition Display

The MTT S80 integrates Moore Threads' second-generation smart multimedia engine, capable of processing AV1, H.264, H.265, VP9, and other video formats, and supports HDR10 video processing and playback. With advanced DisplayPort1.4a and HDMI 2.1 interfaces, it can support up to four 8K resolution display outputs, directly connecting to mainstream 8K monitors and televisions. Through MST (Multi-Stream Transport), it offers the ability to transmit up to four independent video streams in a single DisplayPort1.4a interface.

Full-Featured GPU

The MTT S80 has a complete set of four functional engines, providing full-featured support based on PC scenarios in areas such as artificial intelligence and multimedia processing. Based on the MTT S80, users can train classic models in computer vision, natural language understanding, and also perform encoding and decoding acceleration in mainstream video formats such as AV1, HEVC, and H.264.

PES Control Center

The PES Control Center integrates functions such as driver updates, graphics card operational status monitoring, display settings, and game screenshots. The functionality of PES will continue to expand and optimize. Moore Threads‘ graphics cards will continue to extend useful and fun features and deliver them to users through the PES Control Center.

MTT S80

Specifications
